In this blog, I will demonstrate use of FlexDeploy workflow to install binaries for Oracle BI 184.108.40.206, 220.127.116.11 or 18.104.22.168. You can use this workflow to install the same versions of Fusion Middleware Infrastructure as well. Files used in this blog post can be downloaded from OracleBI.7z. You can use Workflow XML included in download zip to create FlexDeploy Utility Workflow in your environment. You can alternatively just use shell scripts provided as well for installation.
You must install appropriate Java version on your Servers and save downloaded installer zip files on the servers as well. You can keep downloaded zip files in shared filesystem as well. Keep in mind that if you have multiple Nodes in your domain, FlexDeploy will install this on all Nodes that are included.

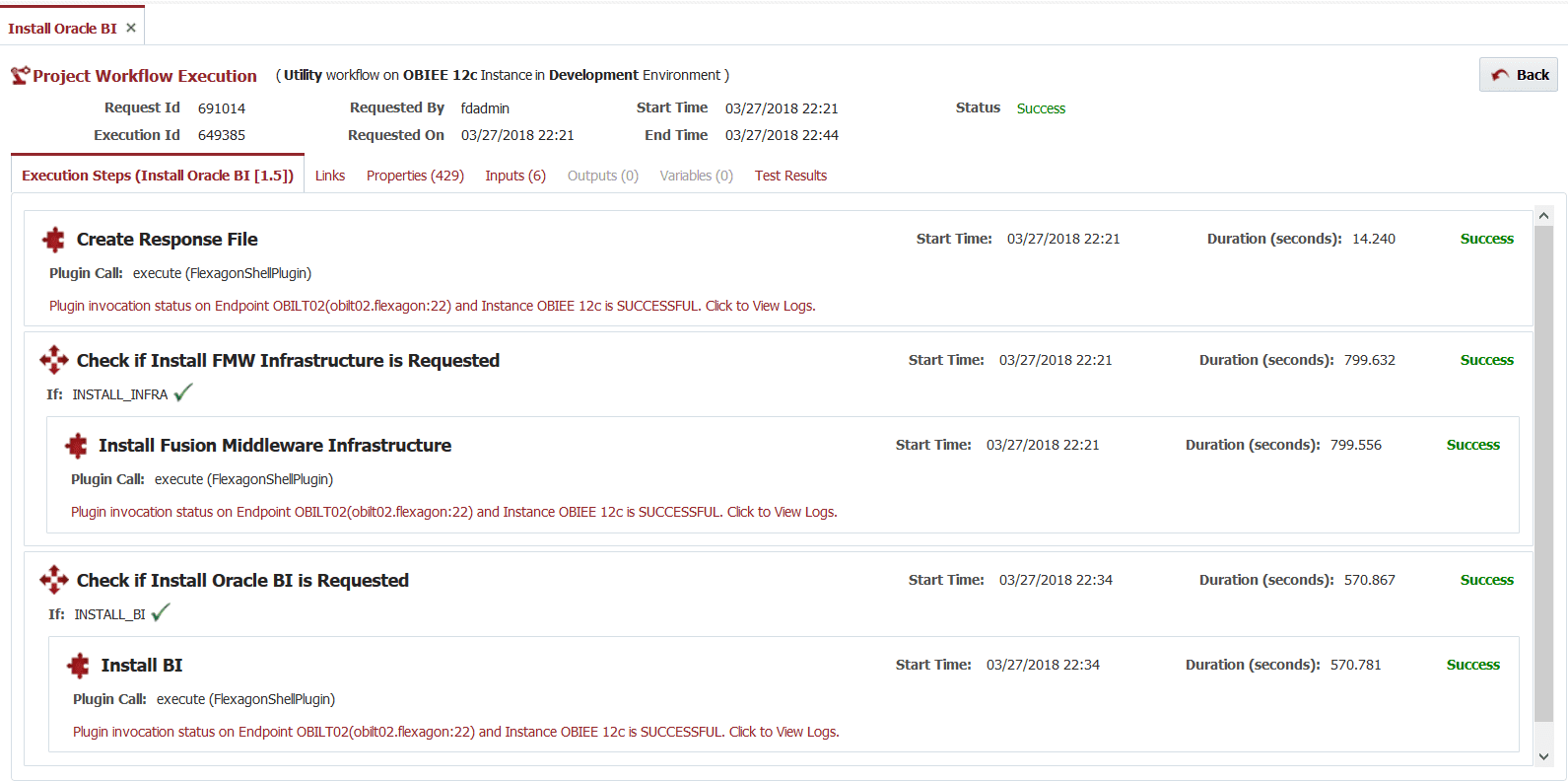

Let’s first look at steps involved in the FlexDeploy workflow. You can see all details once you open Workflow in your environment.
- Create response file. Install commands require response files for silent installation.
- Run Installer for Fusion Middleware Infrastructure. Unzip downloaded zip first and run Java command using response files.
- Run Installer for Oracle BI. This is done by using file included in first zip file.
RESPONSE_FILE=$FD_TEMP_DIR/install.rsp echo "# Copyright (c) 2017 Oracle and/or its affiliates. All rights reserved. # # Licensed under the Universal Permissive License v 1.0 as shown at http://oss.oracle.com/licenses/upl. # [ENGINE] #DO NOT CHANGE THIS. Response File Version=22.214.171.124.0 [GENERIC] DECLINE_SECURITY_UPDATES=true SECURITY_UPDATES_VIA_MYORACLESUPPORT=false" > $RESPONSE_FILE
# FMW_VERSION - For example, 126.96.36.199, 188.8.131.52 or 184.108.40.206 # ORACLE_HOME # BINARY_LOCATION # JAVA_HOME RESPONSE_FILE=$FD_TEMP_DIR/install.rsp INV_FILE=/etc/oraInst.loc cd $BINARY_LOCATION if [ "$FMW_VERSION" == "220.127.116.11" ] then FMW_ZIP=fmw_18.104.22.168.0_infrastructure_Disk1_1of1.zip FMW_JAR=fmw_22.214.171.124.0_infrastructure.jar elif [ "$FMW_VERSION" == "126.96.36.199" ] then FMW_ZIP=fmw_188.8.131.52.0_infrastructure_Disk1_1of1.zip FMW_JAR=fmw_184.108.40.206.0_infrastructure.jar elif [ "$FMW_VERSION" == "220.127.116.11" ] then FMW_ZIP=fmw_18.104.22.168.0_infrastructure_Disk1_1of1.zip FMW_JAR=fmw_22.214.171.124.0_infrastructure.jar else echo $FMW_VERSION is not supported for install. exit 1 fi # Unzip first, if already unzipped leave it if [ -f $FMW_JAR ] then echo $FMW_JAR already exists in $BINARY_LOCATION else if [ -f $FMW_ZIP ] then echo unzip $FMW_ZIP unzip $FMW_ZIP else echo $FMW_ZIP not found in $BINARY_LOCATION exit 1 fi fi $JAVA_HOME/bin/java -d64 -jar $FMW_JAR -silent -invPtrLoc $INV_FILE -responseFile $RESPONSE_FILE -jreLoc $JAVA_HOME ORACLE_HOME=$ORACLE_HOME INSTALL_TYPE="Fusion Middleware Infrastructure"
# FMW_VERSION - For example, 126.96.36.199, 188.8.131.52 or 184.108.40.206 # ORACLE_HOME # BINARY_LOCATION RESPONSE_FILE=$FD_TEMP_DIR/install.rsp INV_FILE=/etc/oraInst.loc cd $BINARY_LOCATION if [ "$FMW_VERSION" == "220.127.116.11" ] then BI_ZIP1=fmw_18.104.22.168.0_bi_linux64_Disk1_1of2.zip BI_ZIP2=fmw_22.214.171.124.0_bi_linux64_Disk1_2of2.zip BI_UNZIPPED1=bi_platform-126.96.36.199.0_linux64.bin BI_UNZIPPED2=bi_platform-188.8.131.52.0_linux64-2.zip elif [ "$FMW_VERSION" == "184.108.40.206" ] then BI_ZIP1=fmw_220.127.116.11.0_bi_linux64_Disk1_1of2.zip BI_ZIP2=fmw_18.104.22.168.0_bi_linux64_Disk1_2of2.zip BI_UNZIPPED1=bi_platform-22.214.171.124.0_linux64.bin BI_UNZIPPED2=bi_platform-126.96.36.199.0_linux64-2.zip elif [ "$FMW_VERSION" == "188.8.131.52" ] then BI_ZIP1=fmw_184.108.40.206.0_bi_linux64_Disk1_1of2.zip BI_ZIP2=fmw_220.127.116.11.0_bi_linux64_Disk1_2of2.zip BI_UNZIPPED1=bi_platform-18.104.22.168.0_linux64.bin BI_UNZIPPED2=bi_platform-22.214.171.124.0_linux64-2.zip else echo $FMW_VERSION is not supported for install. exit 1 fi # Unzip first, if already unzipped leave it if [ -f $BI_UNZIPPED1 ] then echo $BI_UNZIPPED1 already exists in $BINARY_LOCATION else if [ -f $BI_ZIP1 ] then echo unzip $BI_ZIP1 unzip $BI_ZIP1 else echo $BI_ZIP1 not found in $BINARY_LOCATION exit 1 fi fi if [ -f $BI_UNZIPPED2 ] then echo $BI_UNZIPPED2 already exists in $BINARY_LOCATION else if [ -f $BI_ZIP2 ] then echo unzip $BI_ZIP2 unzip $BI_ZIP2 else echo $BI_ZIP2 not found in $BINARY_LOCATION exit 1 fi fi ./$BI_UNZIPPED1 -silent -invPtrLoc $INV_FILE -responseFile $RESPONSE_FILE -ignoreSysPrereqs -force ORACLE_HOME=$ORACLE_HOME INSTALL_TYPE="BI Platform Distribution with Samples"

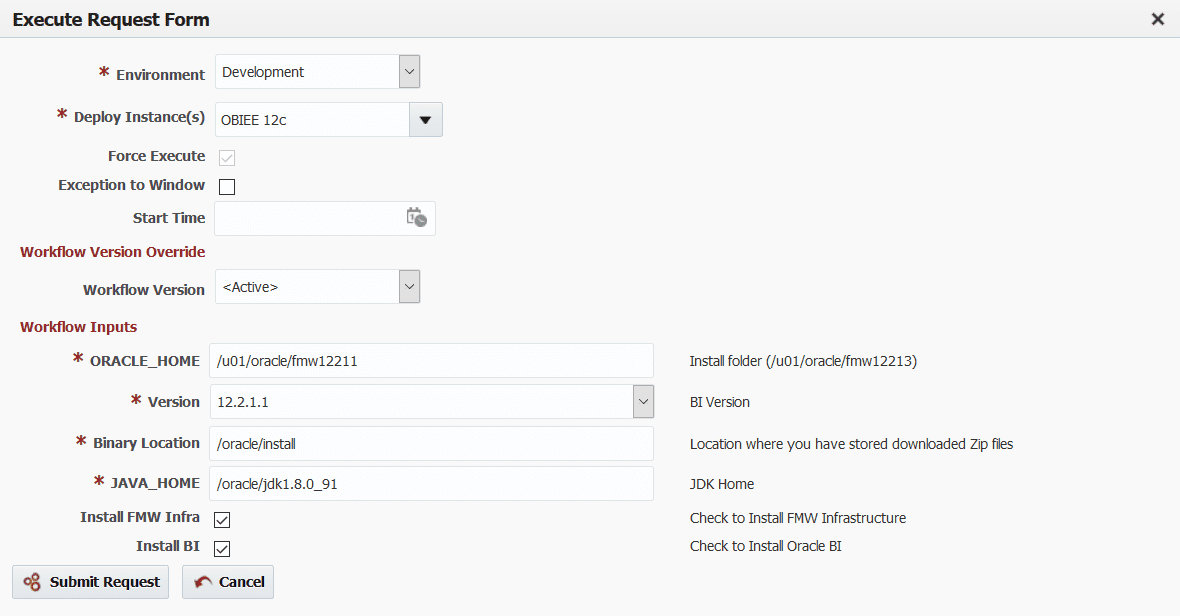

Now, users can request installation using FlexDeploy Utility Project. Here is the sample request form.
As you can see, you can request install in specific folder, for specific version.
I will blog about creation of Domain in next blog entry. Eventually once you have the OBIEE environment you can use FlexDeploy to further automate build and deploy process. See Oracle Business Intelligence Migration with FlexDeploy – Flexibility and Choice.
