DevOps for Oracle CX Commerce Server Side Extensions

Oracle CX Commerce is a robust cloud service for building store fronts, and FlexDeploy includes multiple features to automate the deployment of CX Commerce code and configurations. Oracle CX Commerce Server-Side Extension provides an environment to add additional valuable features on the server side. (See Working with Commerce Cloud Server-Side Extensions.) OCCS server-side extension is a Node.js application and uses Express to define REST endpoints or routes.

(See our blog post, Oracle CX Commerce Deployment Automation with FlexDeploy, for additional information on FlexDeploy’s OCC support.)

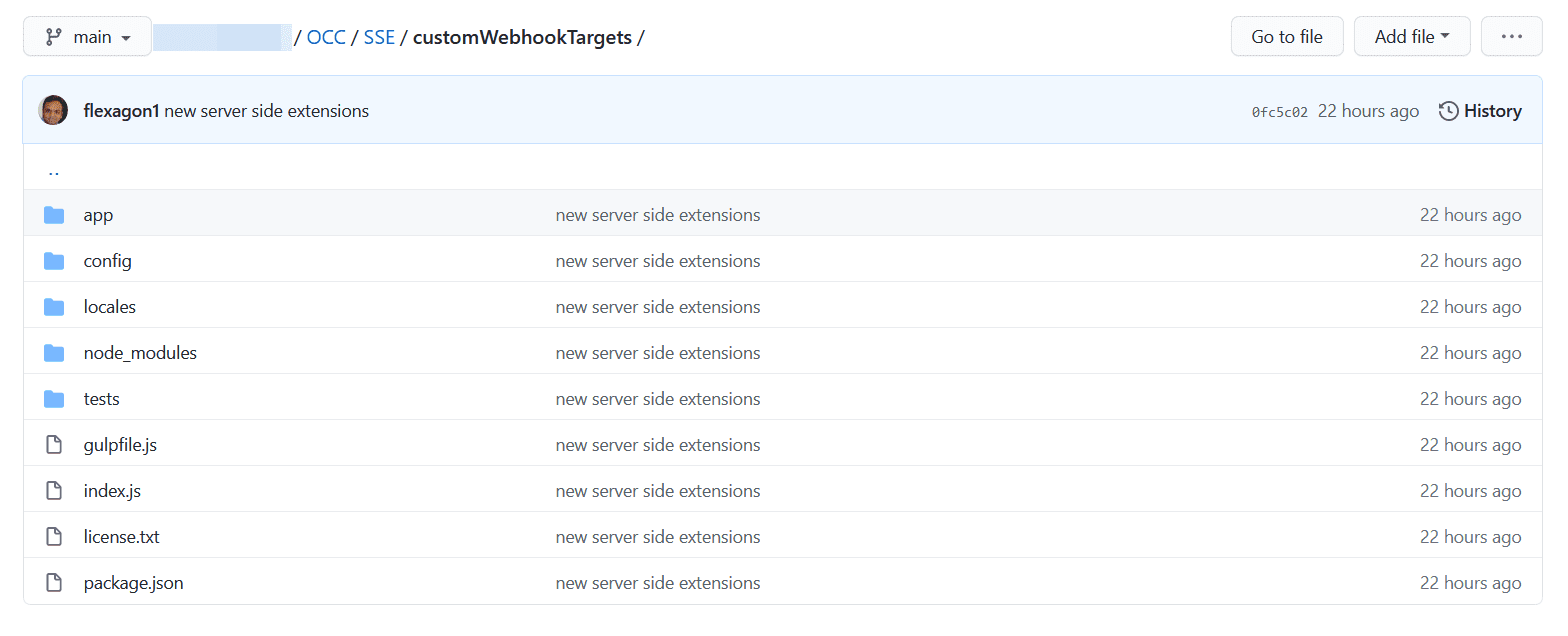

See the code below for sample extension named customWebhookTargets. Developers can create such extensions using an IDE on their workstation and commit it to a source code repository.

Server side extensions in FlexDeployDeploying server side extensions to Oracle CX Commerce requires use of REST API. Admin UI does not provide option to view or upload such extensions. You also need to perform authentication first as well using App Key.

FlexDeploy’s CX Commerce Cloud Plugin

FlexDeploy provides out-of-the-box options to upload such extensions via the CX Commerce Cloud Plugin. This plugin also provides an operation to delete existing extensions, which can be useful in some situations.

Let’s review the details.

Define OCC Environments

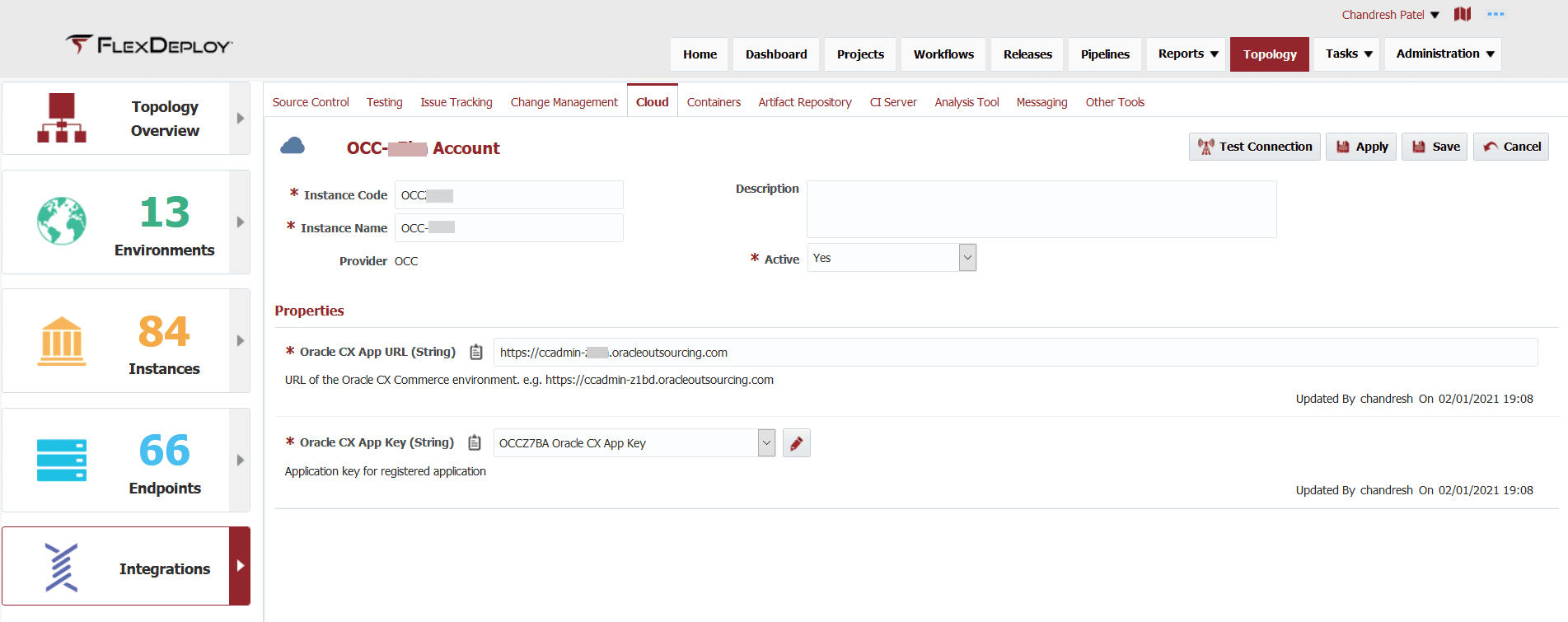

First we can define various OCC environments as accounts in FlexDeploy. FlexDeploy’s plugin will use these details to connect to cloud environments.

Note that each cloud environment will have a different URL and App Key. App Key is encrypted in FlexDeploy or it can be retrieved from external credential store like CyberArk, Hashicorp Vault, or Azure Key Vault.

Oracle CX Commerce in FlexDeploy

Create Build and Deploy Workflows

FlexDeploy’s CX Commerce plugin can be used in a workflow to perform build and deploy operations. Build workflow contains steps to extract code from source code repository and then perform build, which is just a zip operation. Build artifacts are then used during deploy execution.

See an example of deploy workflow below. Note that you are not writing any script code here, just using the drag and drop editor with out-of-the-box operations to create reusable workflows.

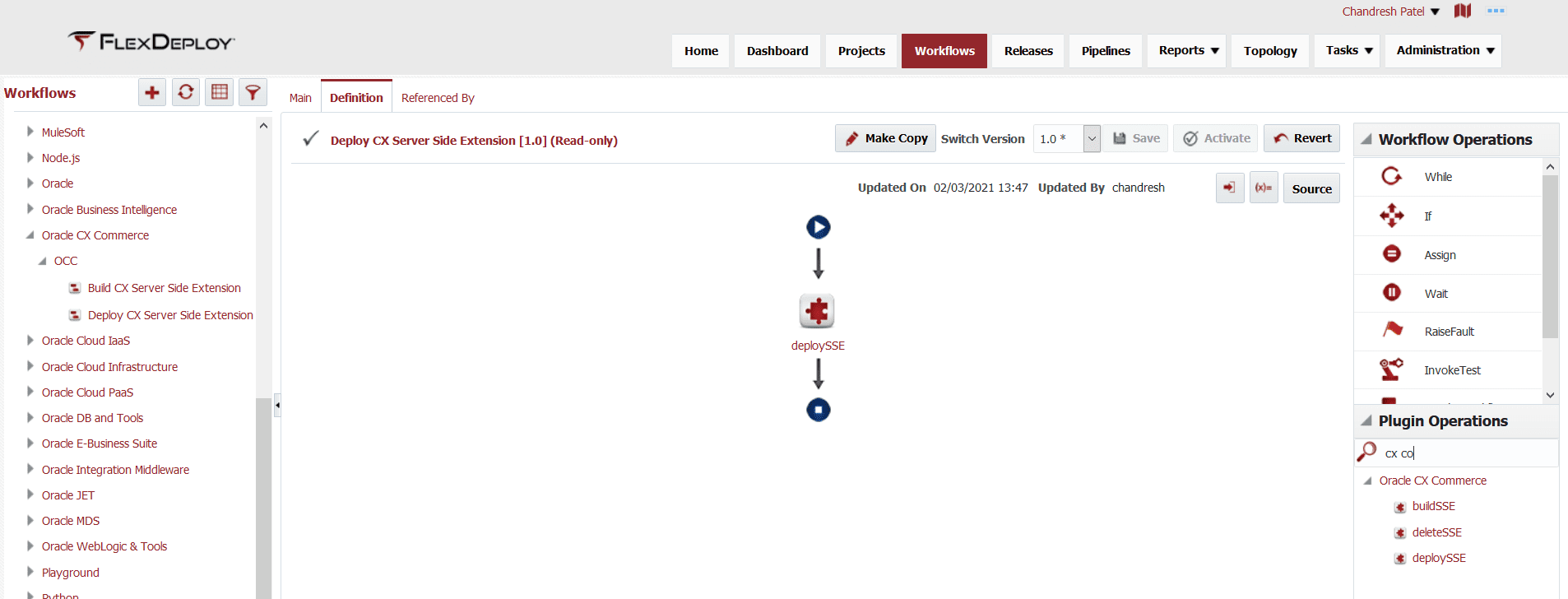

Deploy workflow for a CX Commerce Cloud Server Side Extension in FlexDeploy

Define Topology

We need a simplistic topology to define various cloud environments in FlexDeploy to reference the cloud account created previously. There is no need to create new Endpoint (SSH) as all invocations are done remotely from FlexDeploy (i.e., using LOCALHOST Endpoint).

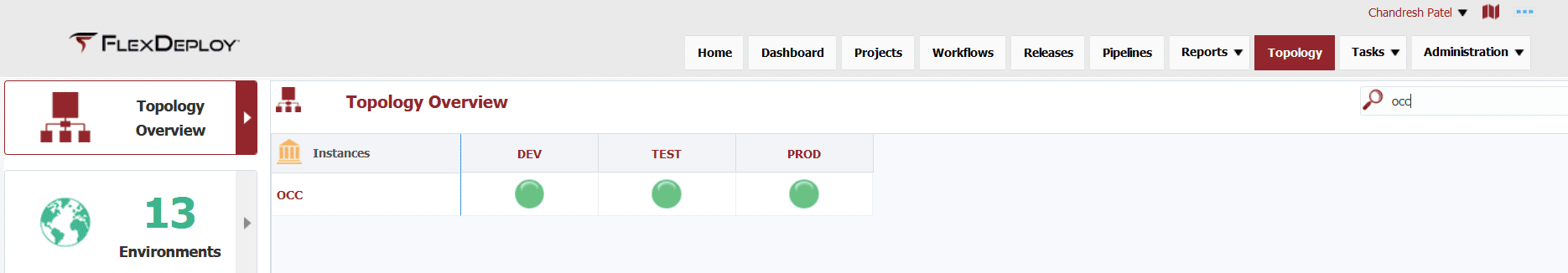

Topology Overview for the Oracle CX Commerce Cloud plugin

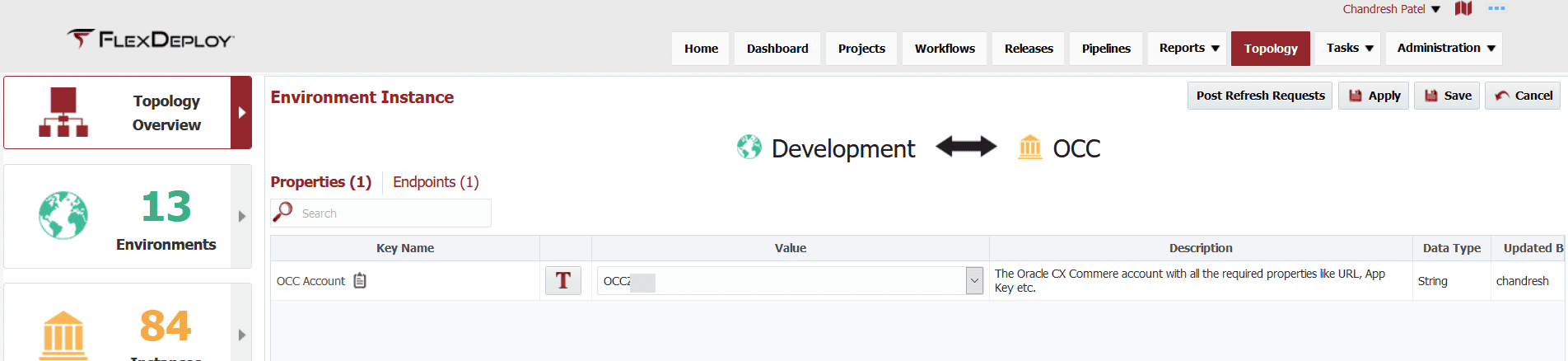

Environment Instance for the Oracle CX Commerce Cloud plugin

Create a Project to Tie it all Together

FlexDeploy project (one per each server side extension) can now bring everything together for DevOps automation. The project references build and deploy workflows, a Git repository, and a folder for source code. We can either automatically (scheduled poll, Git webhook, etc.) or manually trigger build and deploy execution.

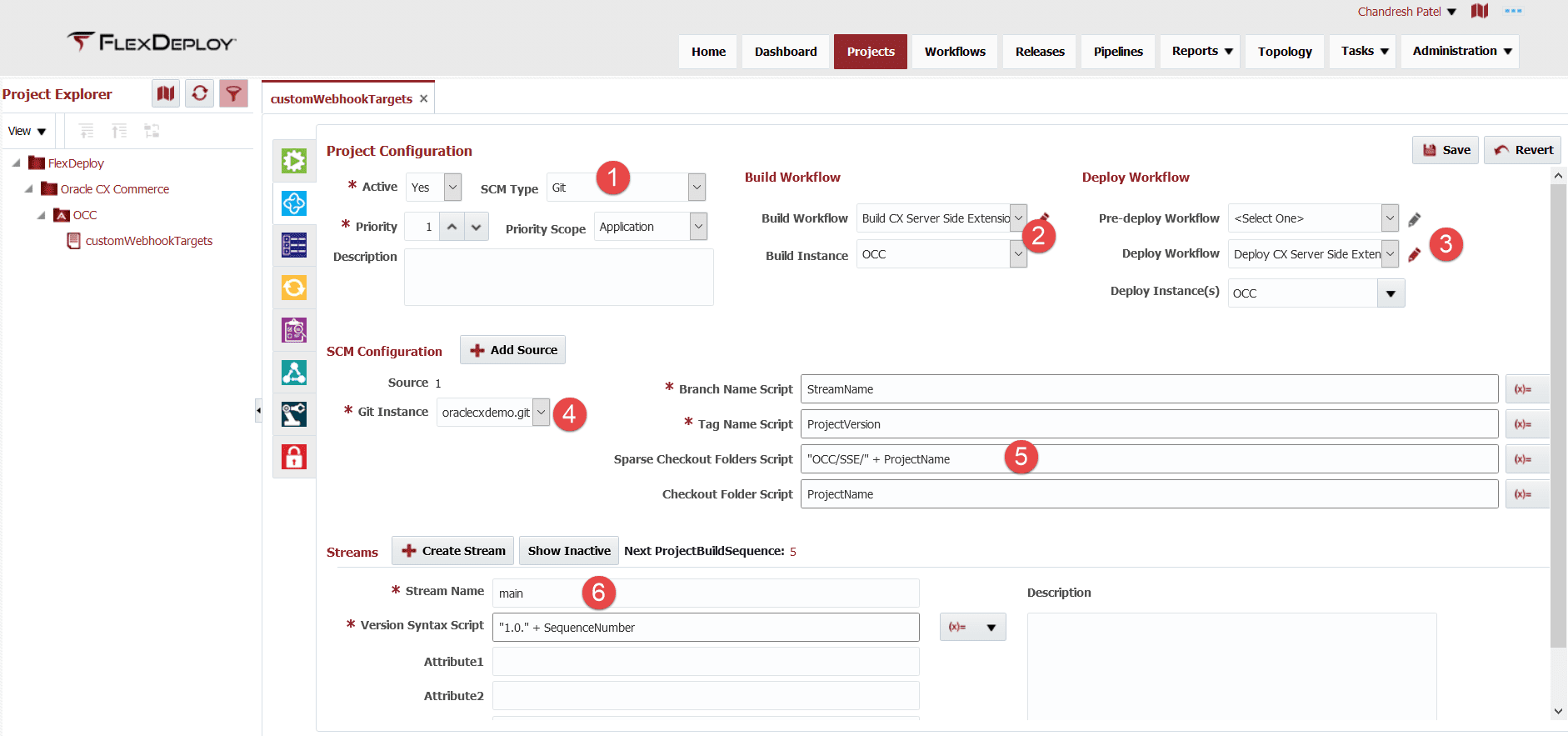

Project Configuration settings for FlexDeploy's Oracle CX Commerce Cloud pluginWe recommend using the Git webhook feature to automatically build and deploy your extensions as soon as code is committed to the Git repository. Here is a view into build and deploy execution activity. Note that you are able to clearly indicate which specific version is deployed to which environment.

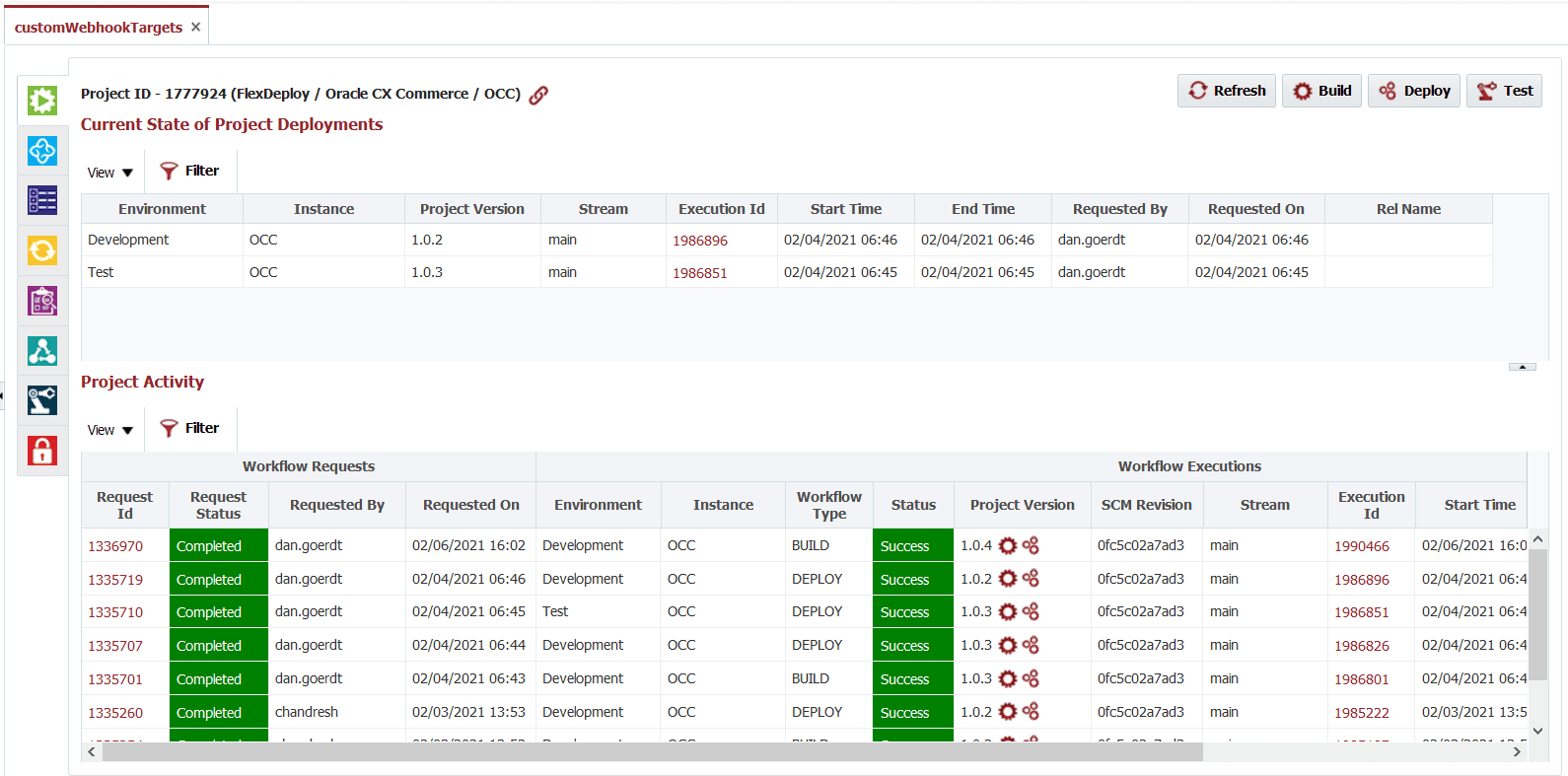

Build and deploy logs from the Oracle CX Commerce Cloud pluginAs always, you can rely on FlexDeploy’s platform features like release orchestration, schedule and approvals, reports etc.

See FlexDeploy Oracle CX Commerce Plugin Guide for more details on this plugin.
